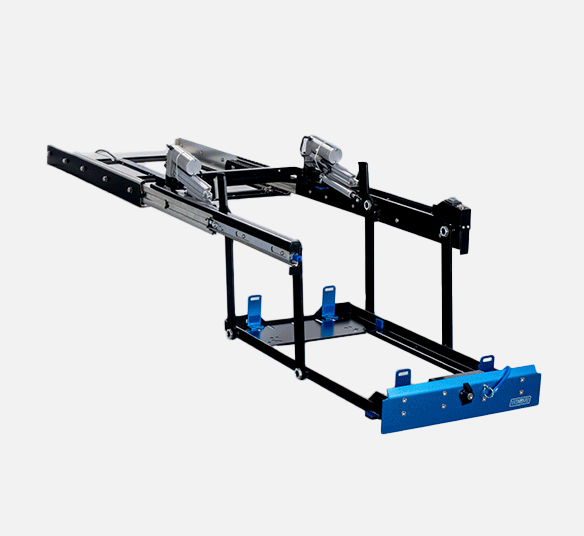

DS40 MSA POWER SLIDE™ - 30010

FEATURES:

• Raises and lowers in 7 seconds
• Runs off 12-volt power source
• Same small footprint as the original patented Drop Slide™
• Compact size
• Easy install
• Lock-in and lock-out safety system
• Powder-coated steel frame construction
• Stainless steel and blue anodised aluminium fittings
• Travel lock and key
• Anodised blue faceplate

INCLUDES:

• Emergency operating handle
• All fixing and tie-down straps
• Pre-drilled tray holes
• MSA 4X4’s Lifetime Guarantee on the slide
• MSA 4X4 3 Year Warranty on the electronic actuators

NOTE:

• MSA 4X4 Fridge Barrier is available for this model

_{MSA POWER SLIDE™ is a trademark used under licence}

Code:  30010
Weight:  38.7kg
Fridge Tray1:    710×390
Slide Length Closed2:    800+20
Slide Length Open3:    1670+20
Overall Width4:    500+20
Drop6:    300
Mount to Base:    35
Max Set Back:    115
Actuators:    12V
Freight Dimensions:    950×660×250
Freight Weight:    41.7kg
(all measurements displayed are in mm)
