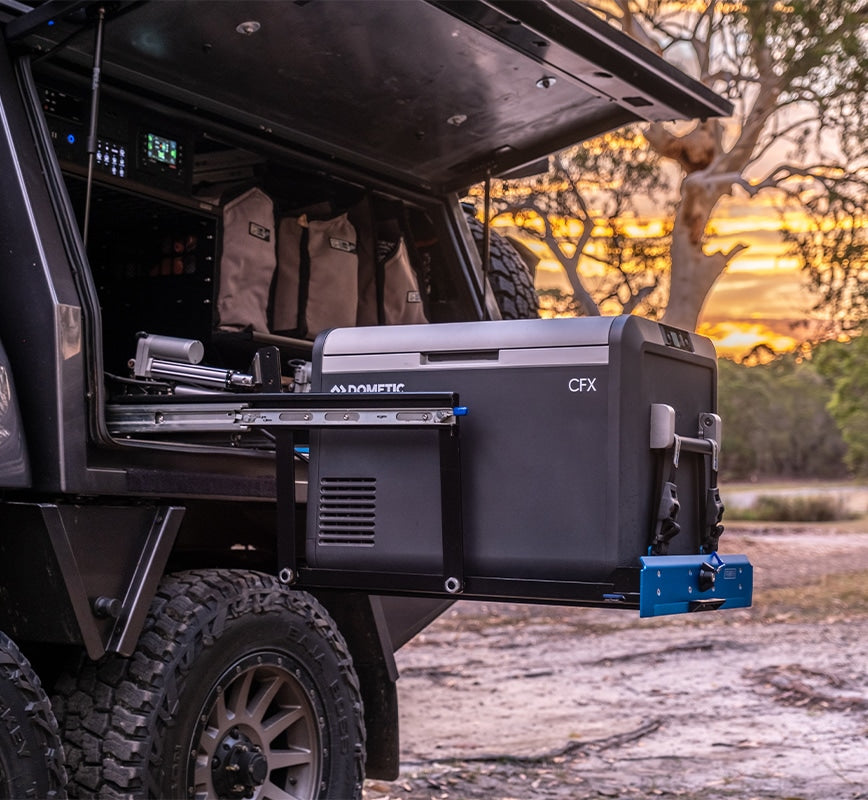

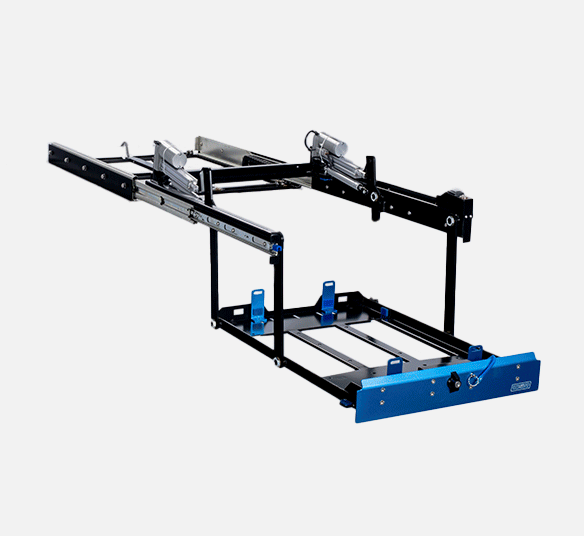

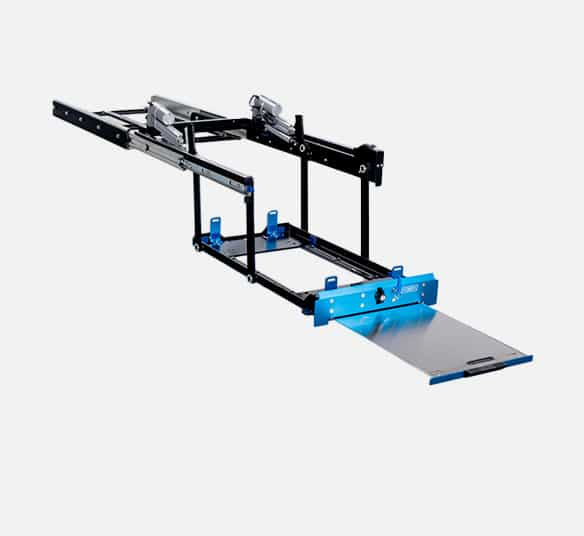

DS45 MSA POWER SLIDE™ with Table - 30016

FEATURES:

• Raises and lowers in 7 seconds
• Runs off 12-volt power source
• Same small footprint as the original patented Drop Slide™
• Compact size
• Easy install
• Lock-in and lock-out safety system
• Powder-coated steel frame construction
• Stainless steel and blue anodised aluminium fittings
• Travel lock and key
• Anodised blue faceplate

INCLUDES:

• Emergency operating handle
• All fixing and tie-down straps
• Pre-drilled tray holes
• MSA 4X4’s Lifetime Guarantee on the slide
• MSA 4X4 3 Year Warranty on the electronic actuators

NOTE:

• MSA 4X4 Fridge Barrier is available for this model

_{MSA POWER SLIDE™ is a trademark used under licence}

Code	30016
Weight	45.6kg
Fridge Tray1	690×480
Slide Length Closed2	760+20
Slide Length Open3	1610+20
Overall Width4	590+20
Drop6	300
Mount to Base	35
Max Set Back	120
Actuators	12V
Table Travel Distance7	420
Table Width8	400
Freight Dimensions	950×660×250
Freight Weight	48.6kg
(all measurements displayed are in mm)
