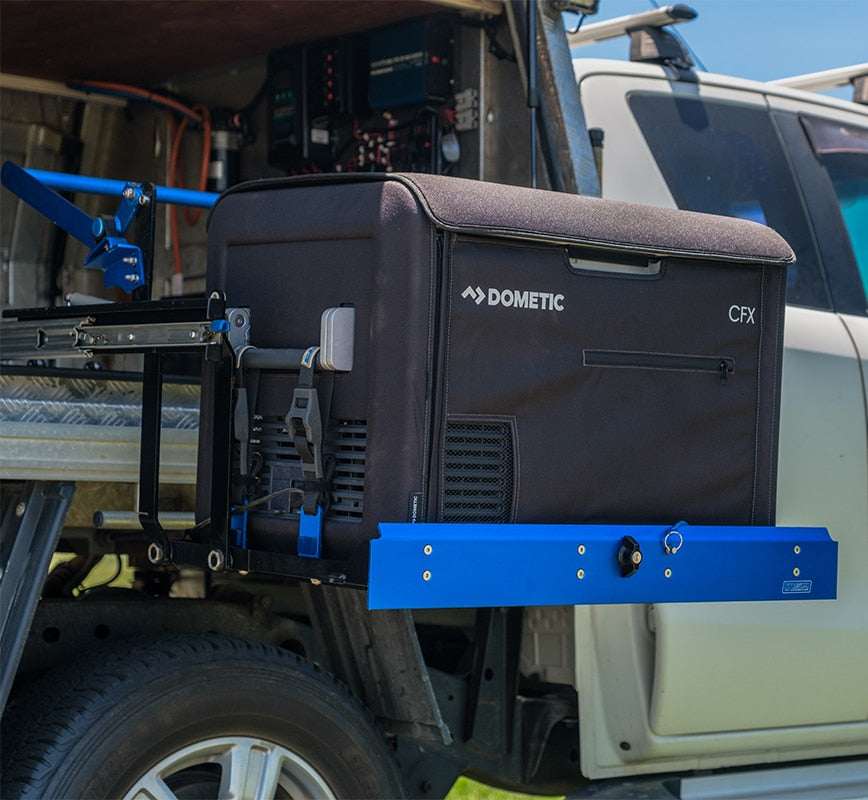

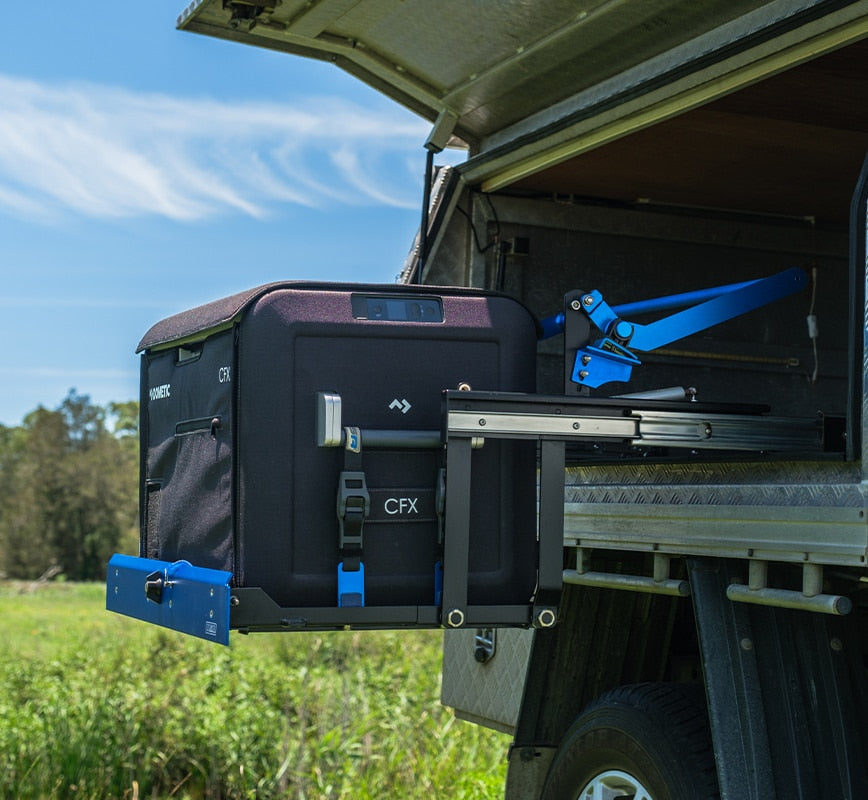

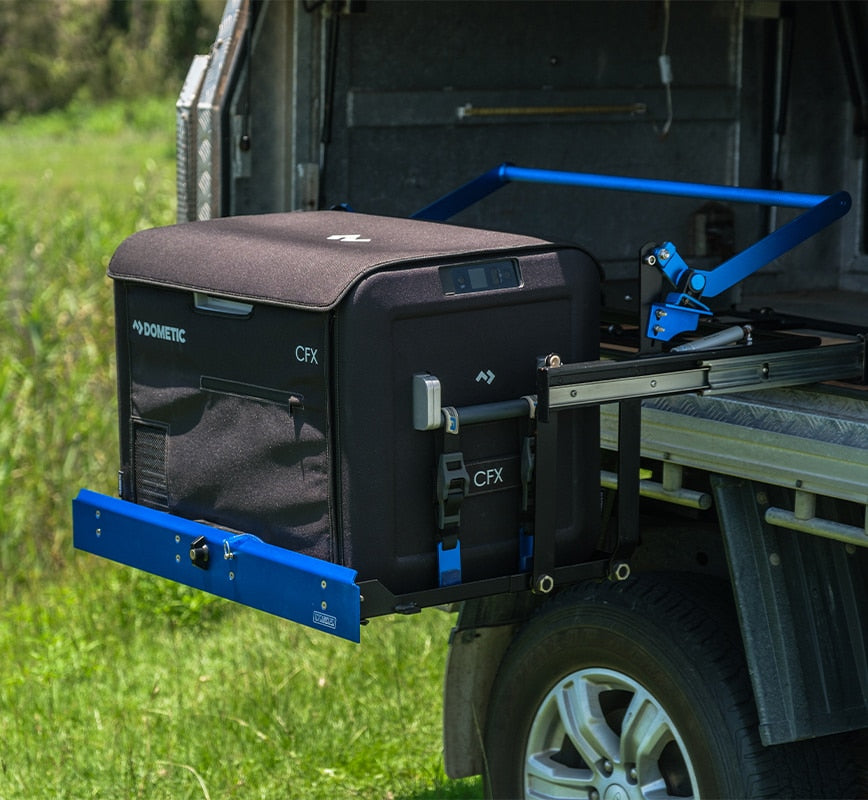

MSA 4x4 DS45SIDE Side Drop Slide™

FEATURES:

• Compact size
• Easy install
• Lock-in and lock-out safety system
• Powder-coated steel frame construction
• Stainless steel and blue anodised aluminium fittings
• Travel lock and key
• Anodised blue faceplate

INCLUDES:

• All fixing and tie-down straps
• MSA 4X4’s Lifetime Guarantee

NOTE:

• MSA 4X4 Fridge Barrier is available for this model

_{DROP SLIDE™ is a trademark used under licence}

Code	DS45SIDE
Weight	32kg
Fridge Tray1	460×730
Slide Length Closed2	530+20
Slide Length Open3	1170+20
Overall Width4	820+20
Handle Width5	815
Drop6	300
Mount to Base	35
Max Set Back	125
Gas Strut	80N
Freight Dimensions	860×690×170
Freight Weight	37kg
(all measurements displayed are in mm)
