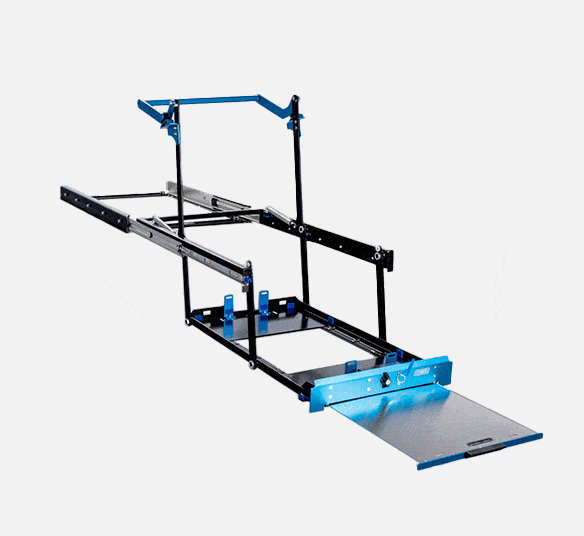

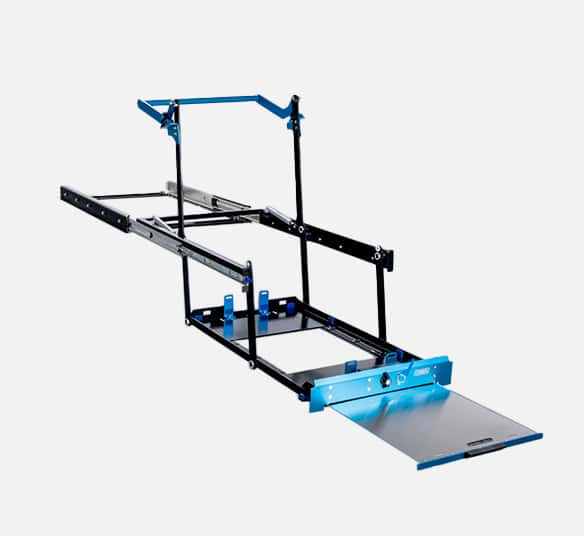

MSA 4x4 DS50 Drop Slide™ with Table - 30005

FEATURES:

• Slide-out 316 stainless steel table
• Compact size
• Easy install
• Lock-in and lock-out safety system
• Powder-coated steel frame construction
• Stainless steel and blue anodised aluminium fittings
• Travel lock and key
• Anodised blue faceplate

INCLUDES:

• All fixing and tie-down straps
• MSA 4X4’s Lifetime Guarantee

NOTE:

• MSA 4X4 Fridge Barrier is available for this model

_{DROP SLIDE™ is a trademark used under licence}

Code	30005
Weight	36kg
Fridge Tray1	810×480
Slide Length Closed2	880+20
Slide Length Open3	1860+20
Overall Width4	590+20
Handle Width5	535
Drop6	300
Mount to Base	35
Max Set Back	120
Table Travel Distance7	420
Table Width8	400
Gas Strut	800N
Freight Dimensions	860×690×170
Freight Weight	39kg
(all measurements displayed are in mm)
