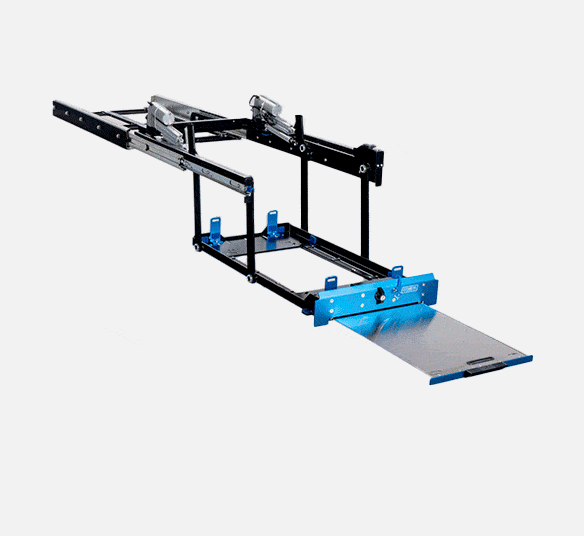

DS40 MSA POWER SLIDE™ with Table - 30015

FEATURES:

• Raises and lowers in 7 seconds
• Runs off 12-volt power source
• Slide-out 316 stainless steel table
• Same small footprint as the original patented Drop Slide™
• Compact size
• Easy install
• Lock-in and lock-out safety system
• Powder-coated steel frame construction
• Stainless steel and blue anodised aluminium fittings
• Travel lock and key
• Anodised blue faceplate

INCLUDES:

• Emergency operating handle
• All fixing and tie-down straps
• Pre-drilled tray holes
• MSA 4X4’s Lifetime Guarantee on the slide
• MSA 4X4 3 Year Warranty on the electronic actuators

NOTE:

• MSA 4X4 Fridge Barrier is available for this model

_{MSA POWER SLIDE™ is a trademark used under licence}

Code	30015
Weight	43.5kg
Fridge Tray1	710×390
Slide Length Closed2	800+20
Slide Length Open3	1670+20
Overall Width4	500+20
Drop6	300
Mount to Base	35
Max Set Back	115
Actuators	12V
Table Travel Distance7	425
Table Width8	310
Freight Dimensions	950×660×250
Freight Weight	46.5kg
(all measurements displayed are in mm)
