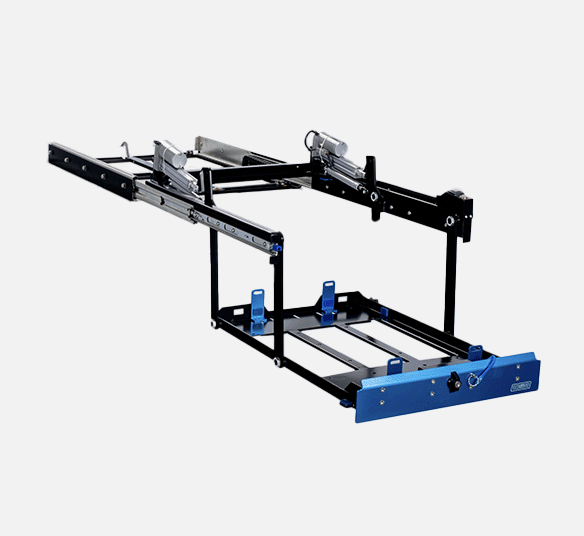

DS45 MSA POWER SLIDE™ - 30011

FEATURES:

• Raises and lowers in 7 seconds
• Runs off 12-volt power source
• Same small footprint as the original patented Drop Slide™
• Compact size
• Easy install
• Lock-in and lock-out safety system
• Powder-coated steel frame construction
• Stainless steel and blue anodised aluminium fittings
• Travel lock and key
• Anodised blue faceplate

INCLUDES:

• Emergency operating handle
• All fixing and tie-down straps
• Pre-drilled tray holes
• MSA 4X4’s Lifetime Guarantee on the slide
• MSA 4X4 3 Year Warranty on the electronic actuators

NOTE:

• MSA 4X4 Fridge Barrier is available for this model

_{MSA POWER SLIDE™ is a trademark used under licence}

Code:    30011
Weight:    39.6kg
Fridge Tray1:    690×480
Slide Length Closed2:    760+20
Slide Length Open3:    1610+20
Overall Width4:    590+20
Drop6:    300
Mount to Base:    35
Max Set Back:    120
Actuators:    12V
Freight Dimensions:    950×660×250
Freight Weight:    42.6kg
(all measurements displayed are in mm)
