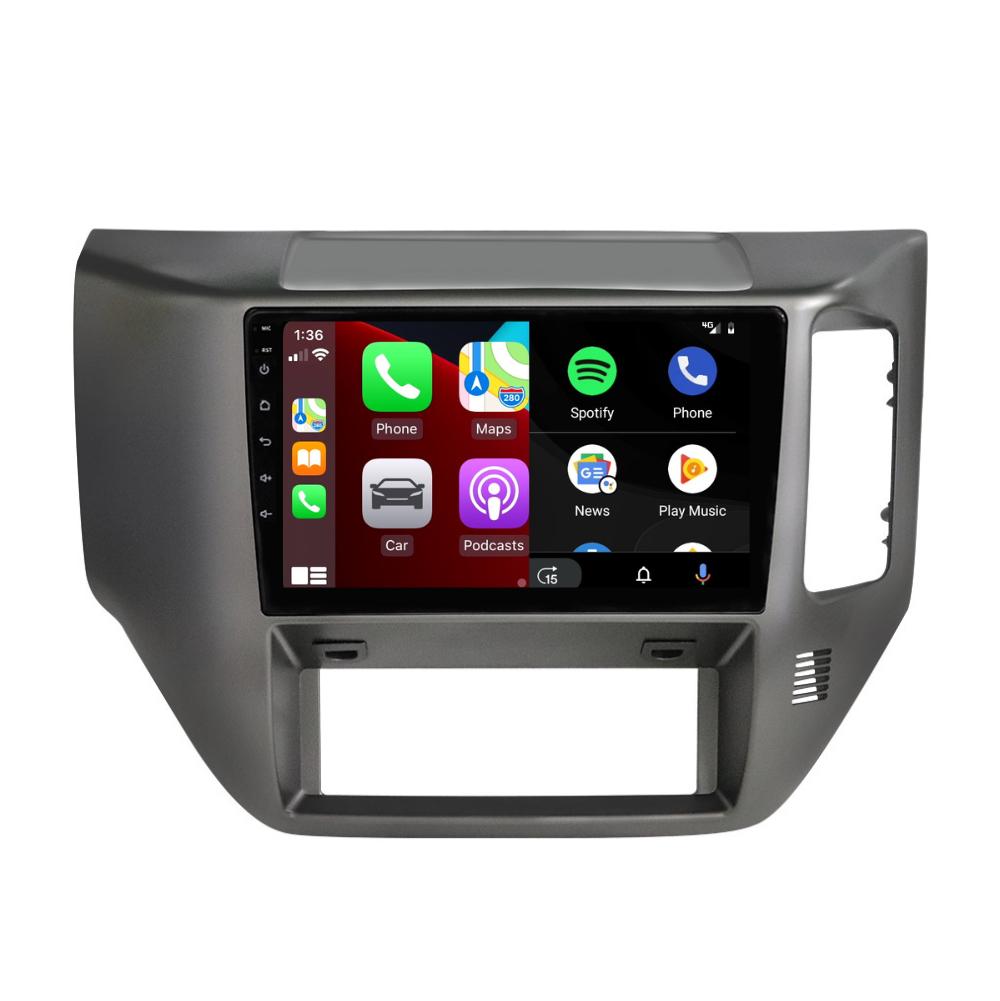

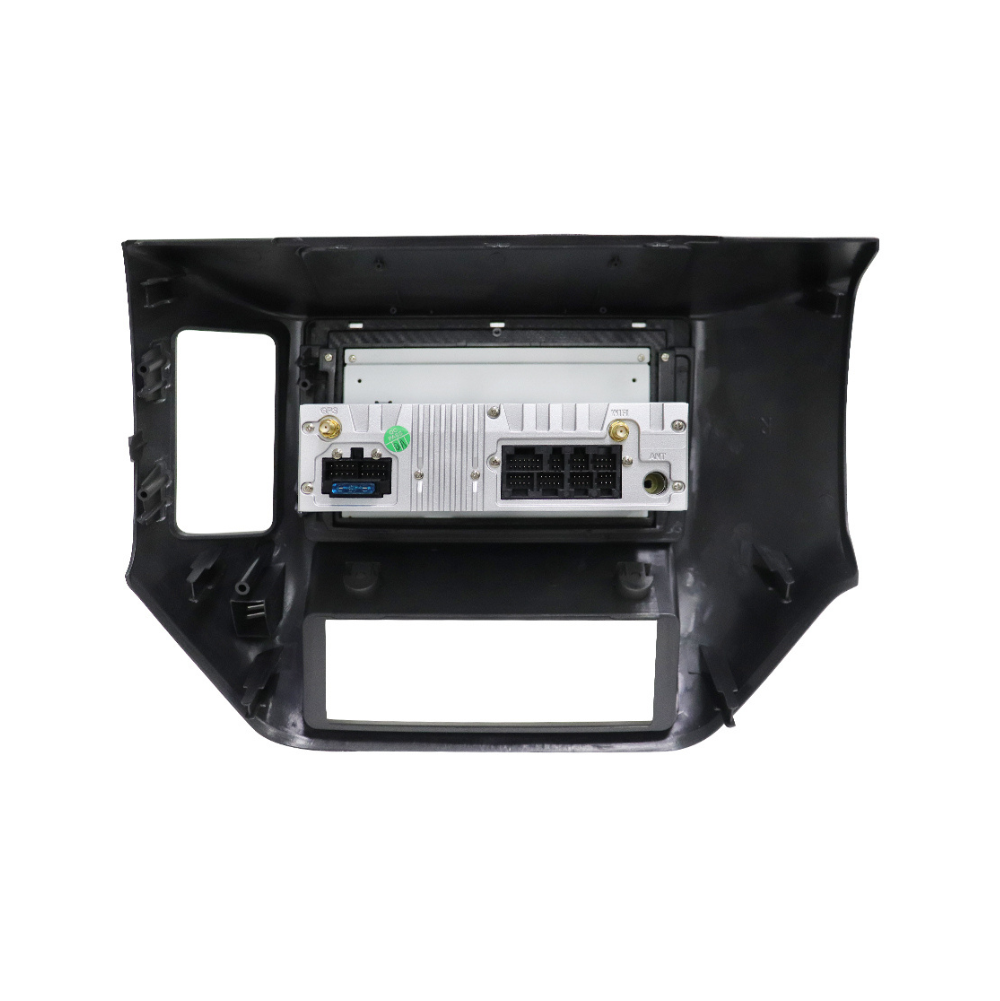

Polaris Head Unit - Suitable for use with Nissan Patrol (GUMaxx)
Polaris Head Unit - Suitable for use with Nissan Patrol (GUMaxx)
Couldn't load pickup availability
Upgrade your Nissan Patrol experience with our cutting-edge Head Unit featuring Wireless Carplay and Wireless Android Auto compatibility. This advanced head unit seamlessly integrates with your vehicle, providing a sleek, feature-packed solution. Enhance safety and convenience with the included Reverse Camera feature. Explore the future of in-car technology today!
9″ sleek head unit designed to fit perfectly in 2005-2016 Nissan Patrol Wagon models only (See FAQ & Compatible vehicles for a list of models)
Wiring harness included
Wireless Carplay / Wired Android Auto
Bluetooth

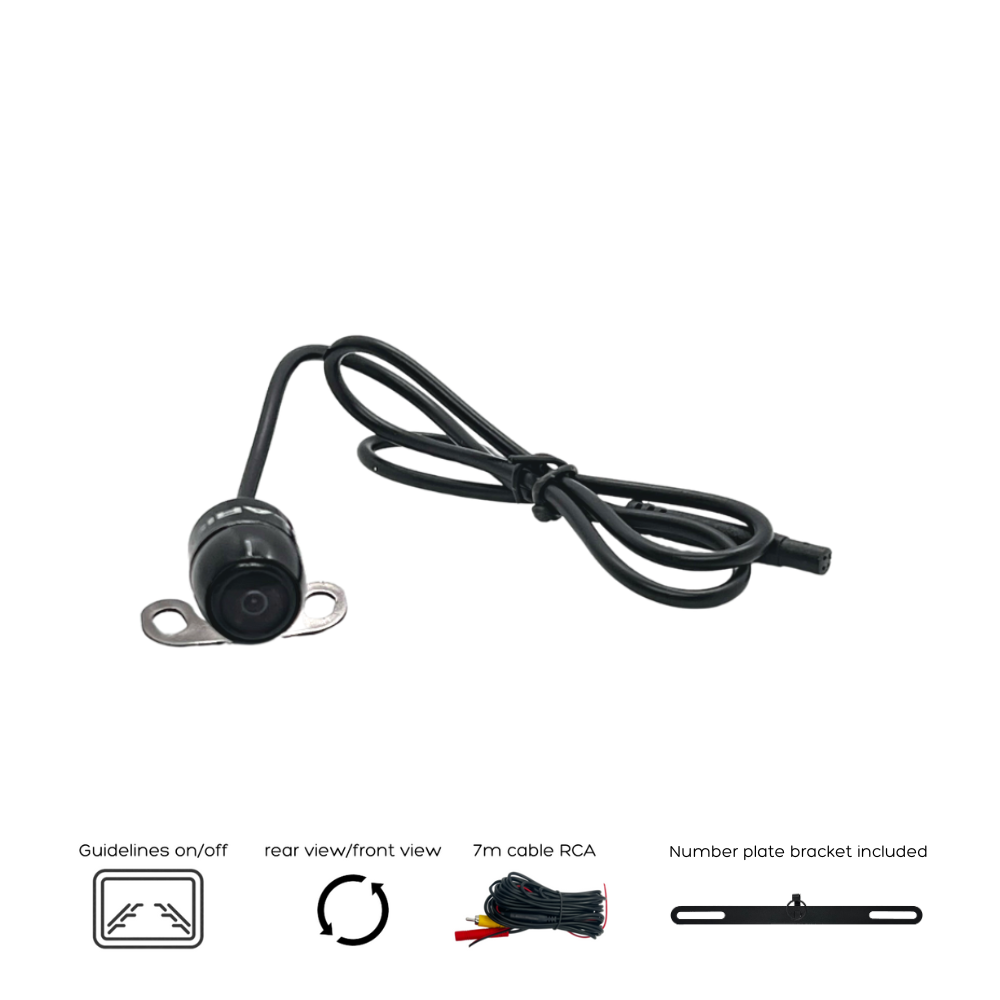

Includes free reverse camera
AM/FM radio
2 x USB inputs
Built-in WiFi
Download additional apps via play the store
Second camera input
Android 10 operating system
Screen resolution: 1024×600
Loads of optional extras!
Compatible vehicles:
2005 – 2016 Nissan Patrols:
GUIV (Wagon version Only)
GU 5 (Wagon version Only)
GU 6 (Wagon version Only)
GU 7 (Wagon version Only)
GU 8 (Wagon version Only)
Y61 (Wagon version Only)
Important: Will not fit Cab chassis models
Additional Information:
| Weight | 3.00 kg |
|---|---|
| Android OS |
10 |
| Resolution |
1024×600 |
| Screen |
Hanstar screen |
| Monitor |
9" capacitive multi touch screen |
| Screen style |
Sits flush with the fascia |
| Power Supply |
12 Volt DC |
| CPU |
64 Bit, Cortex-A53, Octa Core |
| Rockchip |
PX5 |
| Flash |
64GB |
| RAM |
4GB |
| GPS Freq |
16GHz |
| GPS Module |
SIRF III |
| Wiring |
Vehicle specific harness |
| Steering wheel controls |
Supports – need to manually program in steering wheel controls |
| Video Form |
AHD, NTSC, PAL |
| Amplifier IC |
TDA 7851 |
| Multi camera support |
2 camera input, Can upgrade to 3+ cameras with control box |
| Video Decoder |
1080P HW |
| Audio Max Power |
Built in 4×50 with internal amplifier |
| AUX audio Input |
Yes L & R |
| Aux audio output |
RL out, FL out, RR out, FR out |
| EQ |
10 band equaliser |
| Subwoofer out |
Yes |
| Sound effects |
Pop, classical, rock, flat, jazz, custom, voice |
| Carplay / Android Auto |
Compatible, Wired connection, Wireless connection |
| Supports iPhone |
For Carplay, For charging |
| Supports Android phone |
For Android Auto, For charging |
| Supports Ipod |
No |
| Retains factory camera |
No |
| Reverse camera functionality |
Camera will appear on screen when reverse is engaged. Can also view reverse camera via CAM app on head unit (provided that it is wired up correctly) |
| Reverse camera included |
Yes |
| Reverse camera input |
Yellow RCA jack |
| Reverse trigger |
Yes |
| Bluetooth functionality |
Compatible with BT2.0 for most brand phones, External microphone included, Import phone book, Stream audio via bluetooth |
| Bluetooth |
WQ_RF210 |
| AM |
522KHz-1620KHz, Can set up to 30 presets |
| FM |
76.0 MHz-108.0 MHz, Can set up to 30 presets |
| Front camera functionality |
Can also switch over to the camera when in reverse by pressing the return button on screen, Can be accessed via CAM app, Can be used as a second camera input (e.g., Caravan camera) |
| Front camera included |
No |
| Front camera input |
Yellow RCA jack |
| Street Mapping |
Navigation can be used through Carplay / Android Auto, Other mapping apps can be installed onto head unit (may require internet connectivity) |
| Off Road Mapping |
Download your favourite off-road navigation from the Google Play store |
| USB |
2 cabled USBs, Support up to 64GB |
| File formats |
MP3/WMA/AAC/RM/FLAC/MPEG-1,2,4/H264/H263/VC1/RV/RMVB/DivX/JPEG/BMP/GIF/PNG |
| DIN size |
Single DIN |
