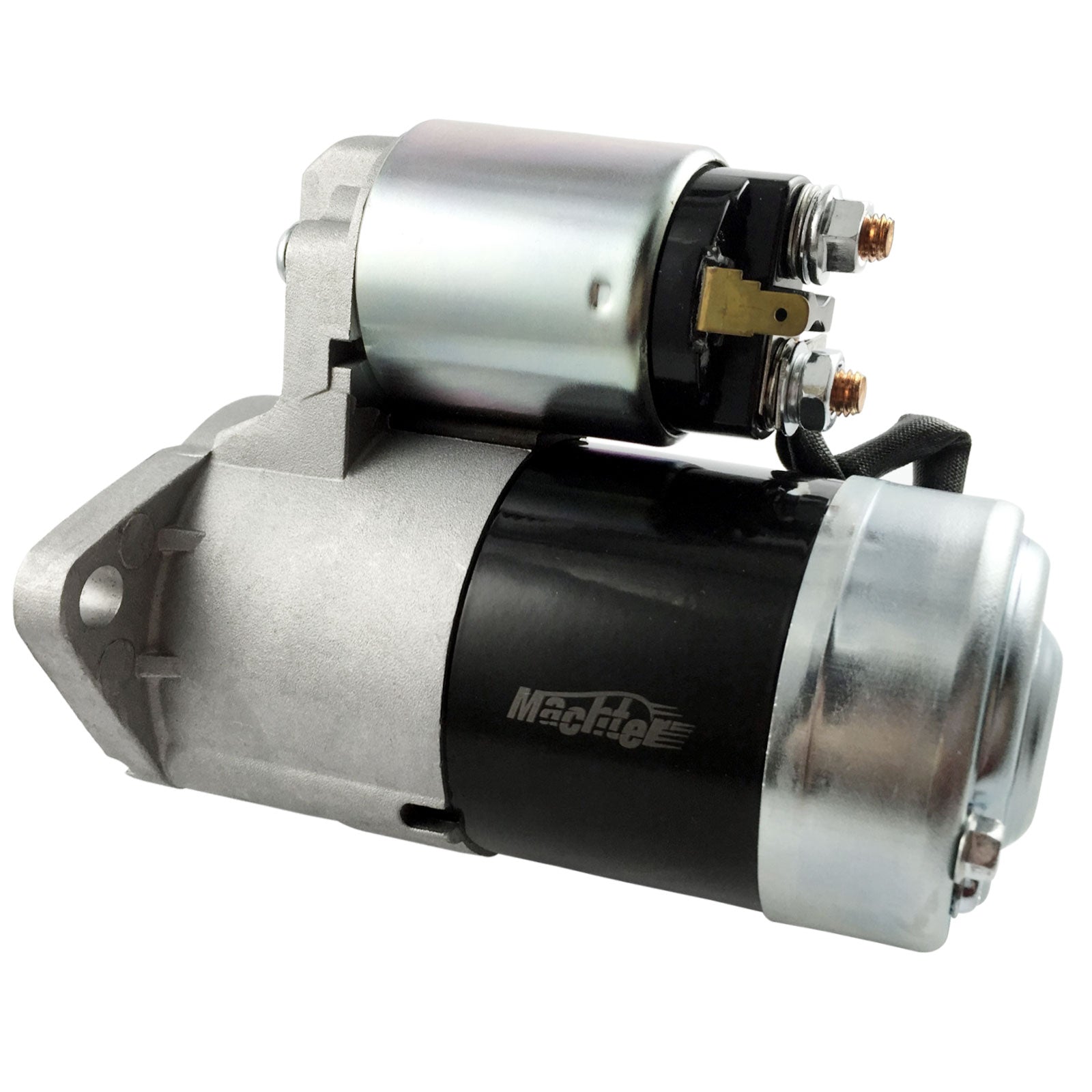

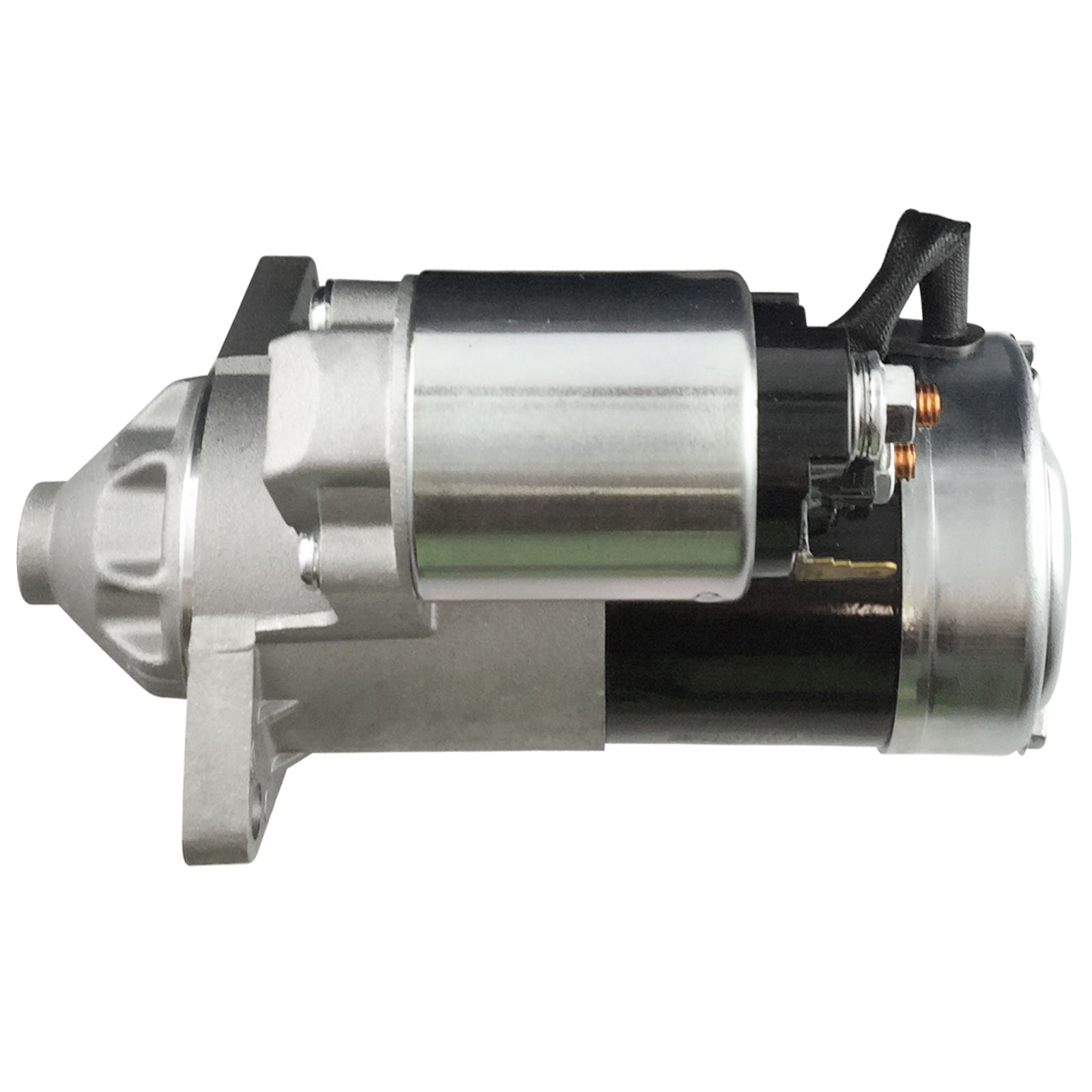

Starter Motor Suitable For Suzuki Baleno Sierra Swift Vitara G13A G16A G16B 1.3L 1.5L 1.6

Parts For Repair Only

Item Number:
SMOTOR-SU001M

Features:
12V, 1.4KW, 9TH, CW

Suit:
Fit For Holden Cruze eng. M15A 1.5L 2002-2003;
Fit For Suzuki Baleno eng. G16B 1.6L 1995-2001;
Fit For Suzuki Baleno eng. 18A 1.8L 1995-2001;
Fit For Suzuki Carry Van eng. G13B 1.3L 1999-2005;
Fit For Suzuki Jimny SN413 eng. M13A, G13B 1.3L 1998-2003;
Fit For Suzuki Ignis eng. M13A 1.3L 2000-2003;
Fit For Suzuki Ignis eng. M15A 1.5L 2000-2003;
Fit For Suzuki Liana eng. M16A 1.6L 2001-2003;
Fit For Suzuki Sierra eng. G13A 1.3L 1985-1998;
Fit For Suzuki Sierra eng. G13B 1.3L 1985-1998;
Fit For Suzuki Swift eng. G16A 1.6L 1988-1998;
Fit For Suzuki Swift eng. G16B 1.6L 1988-1998;
Fit For Suzuki Swift eng. M15A 1.5L 2005-2006;
Fit For Suzuki Vitara eng. G13B 1.3L 1987-1988;
Fit For Suzuki Vitara eng. G16A 1.6L 1988-1998;
Fit For Suzuki Vitara eng. G16B 1.6L 1991-2003;
Please note this starter does not have threaded mounting holes.


NOTE: Does NOT suit Jimny models with Part Number 3110081A3 / M000T84981, check your original type or send your part number to us before placing the order.

Specifications:
Volts    12V
KiloWatts    1.4KW
Teeth    9TH
Rotation    CW
Overall Length    230mm
Mounting Hole    9.2mm
Mt Holes Centre    105.5mm
Flange Diameter    66mm
Nose Cone Length    41mm
Pinon Diameter    28mm
Out of Mesh Clearance    4mm
Field Housing Diameter    76mm

Package:
1 * Starter Motor
