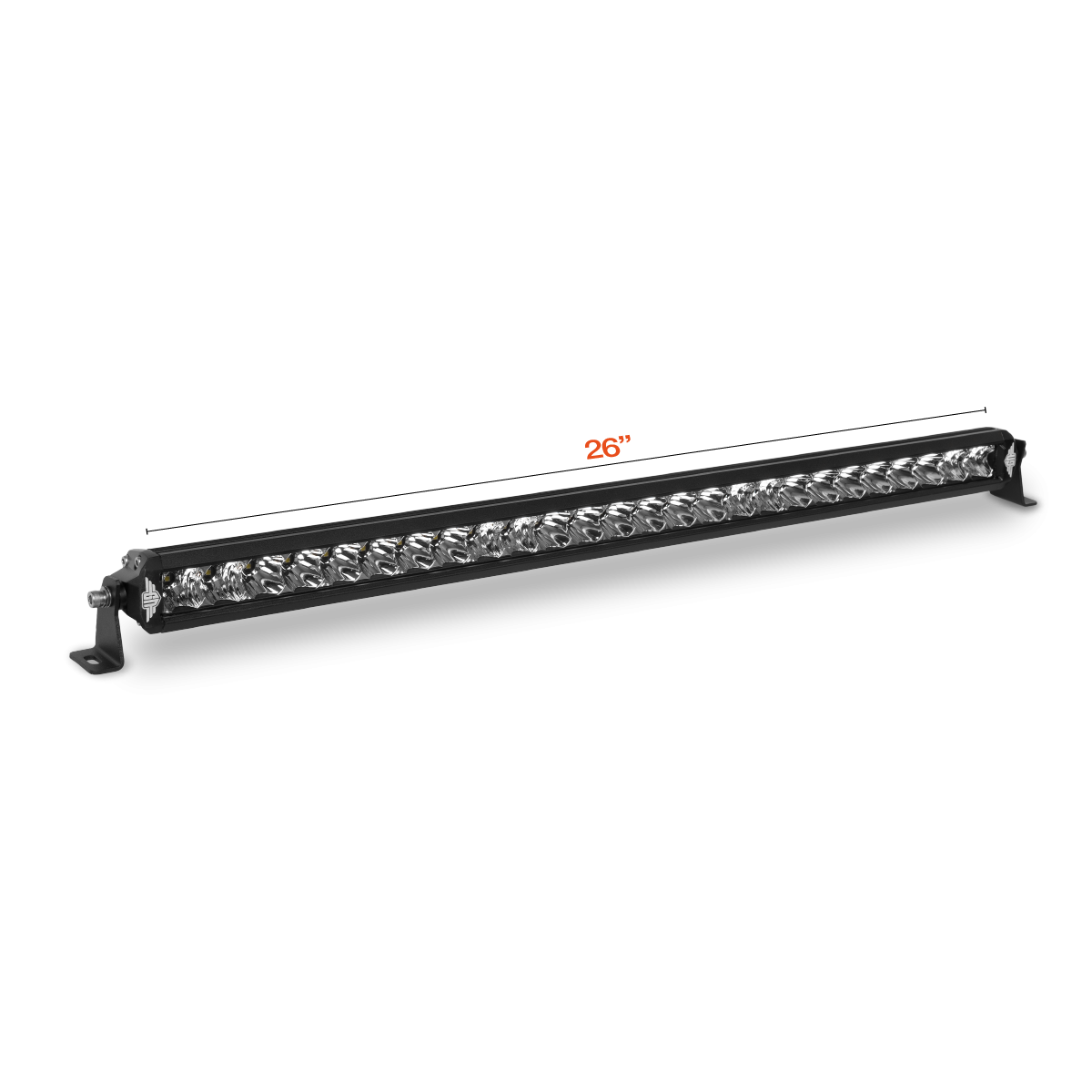

Ultimate9 LED Light Bar 26"

Details
Face the challenges of the dark with the Ultimate9 LED Light Bars.

Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation.

Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.

Features:
Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for term long submersion and total dust ingress.
IP69K for stream jet cleaning.
Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
Technology: Grade A Osram 5W LED chips & sealed DT connectors.


Kit Includes:
• LED Light Bar
• Side-Mount Brackets & Hardware

Harnesses available separately*

What Harness Do I Need?*
Ultimate9 20", 26", & 30" LED Light Bars, more often fitted at the front of vehicles, utilise the Twin Output Harness.

Note: The Twin Output Harness is capable of powering two 20", 26", or 30" bars.

Specifications:
Input Power: 9-36V
Beam Pattern: Flood & Spot Combination
Beam Spread: 8° Spot & 20° Flood
Power: 130W
Current Draw: 8.7A @ 13.2V
Raw Lumen: 12,376 lm
Effective Lumen: 6,238 lm

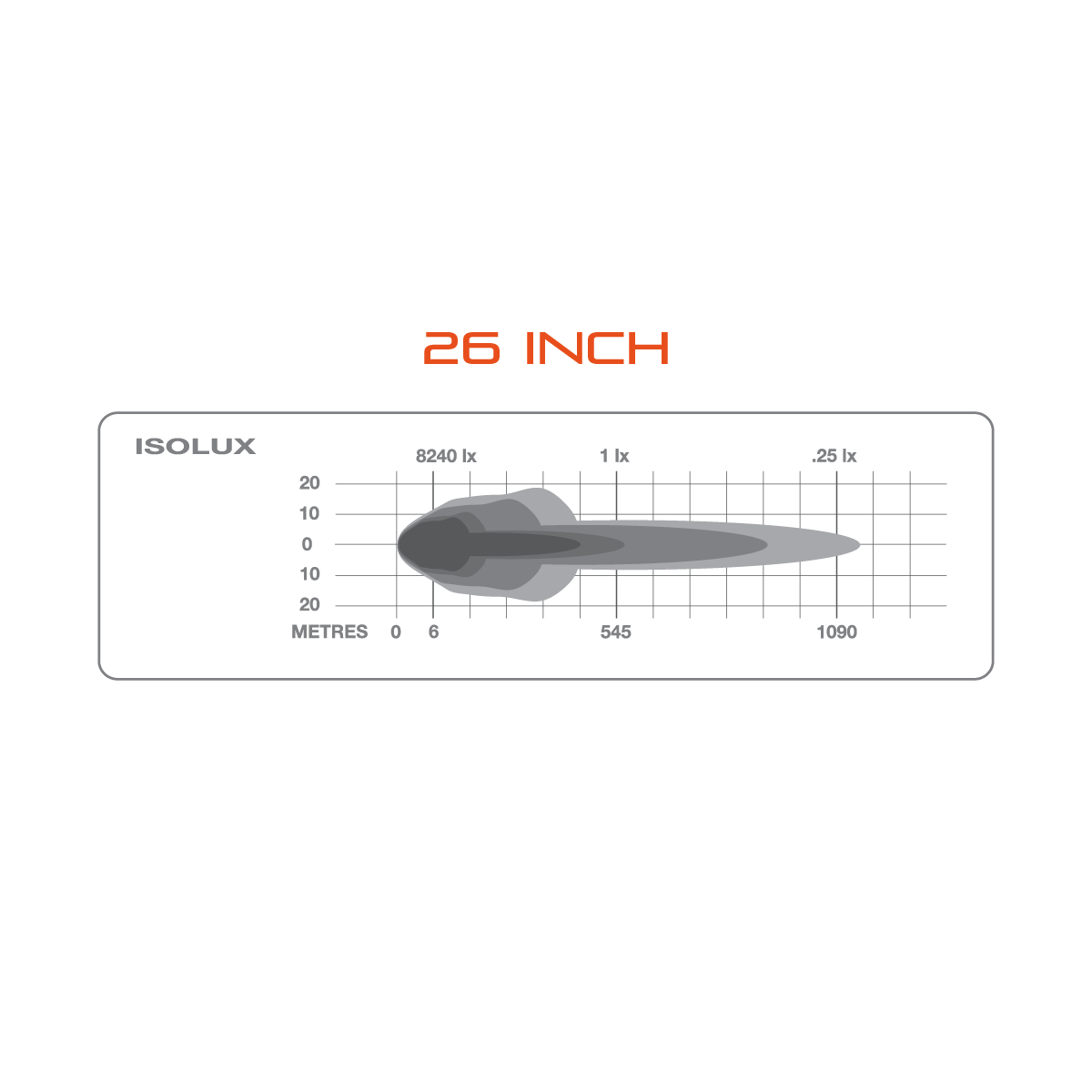

Beam @ 1 Lux: 545m
LED Chips: Osram 5W
Colour Temp: 6000-6500K
Housing Material: 6063 Aluminium
Housing Coating: DuPont®
Lens Material: GE Lexan® Polycarbonate
IP Rating: IP68 / IP69K
Ventilation: Gore® PolyVent
Weight: 2.1Kg
Body Dimensions: (L)709 x (H)46 x (W)49mm
Lens Dimensions: 26" (660mm)
Connector Type: DT Sealed
Operating Temp: -40ºC - 145ºC
Certification: CE, RoHS, RCM

Required Harness: Ultimate9 Twin Output Harness
