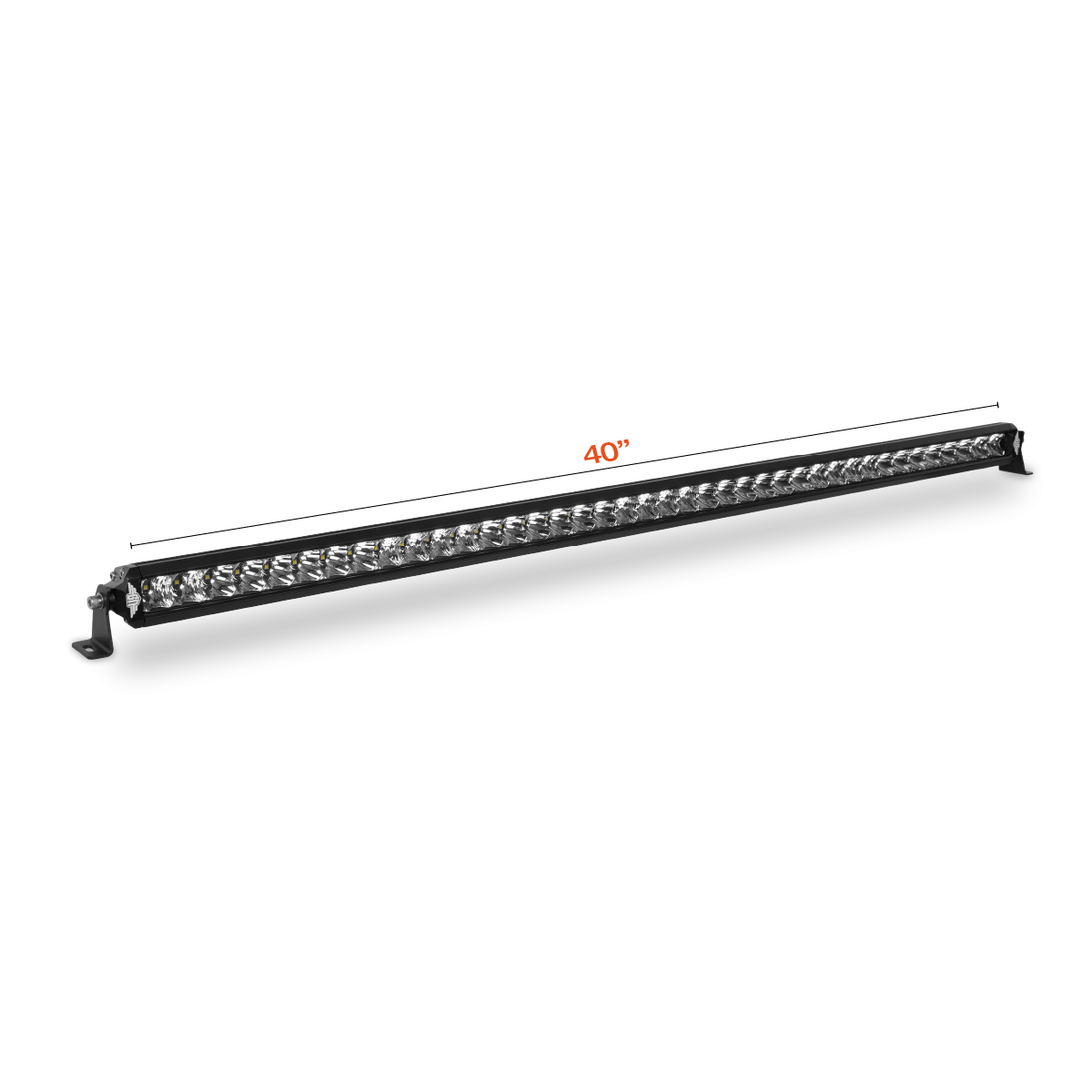

Ultimate9 LED Light Bar 40"

Face the challenges of the dark with the Ultimate9 LED Light Bars.

Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore^® PolyVents for ultimate housing ventilation.

Encased in high-grade aluminium and protected by impact-resistant Lexan^® Polycarbonate lenses, their rugged construction will last for years to come.

• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
  IP68 for long term submersion and total dust ingress.
  IP69K for stream jet cleaning.

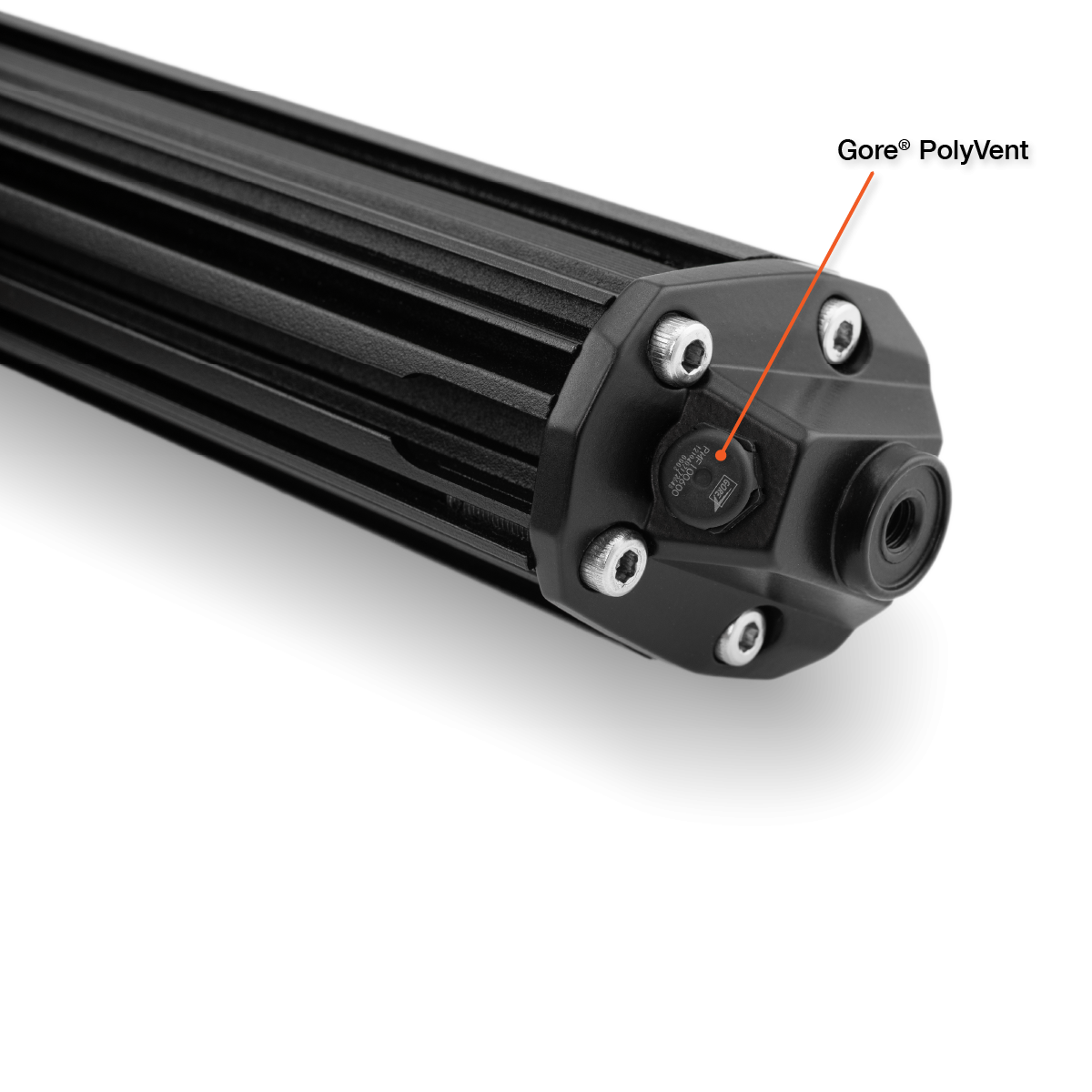

• Ventilation: Gore^® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
• Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont^® coating.
• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
• Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
• Technology: Grade A Osram 5W LED chips & sealed DT connectors.

Specifications:

Input Power: 9-36V
Beam Pattern: Flood & Spot Combination
Beam Spread: 8° Spot & 20° Flood
Power: 200W
Current Draw: 14.4A @ 13.2V
Raw Lumen: 19,040 lm
Effective Lumen: 9,406 lm

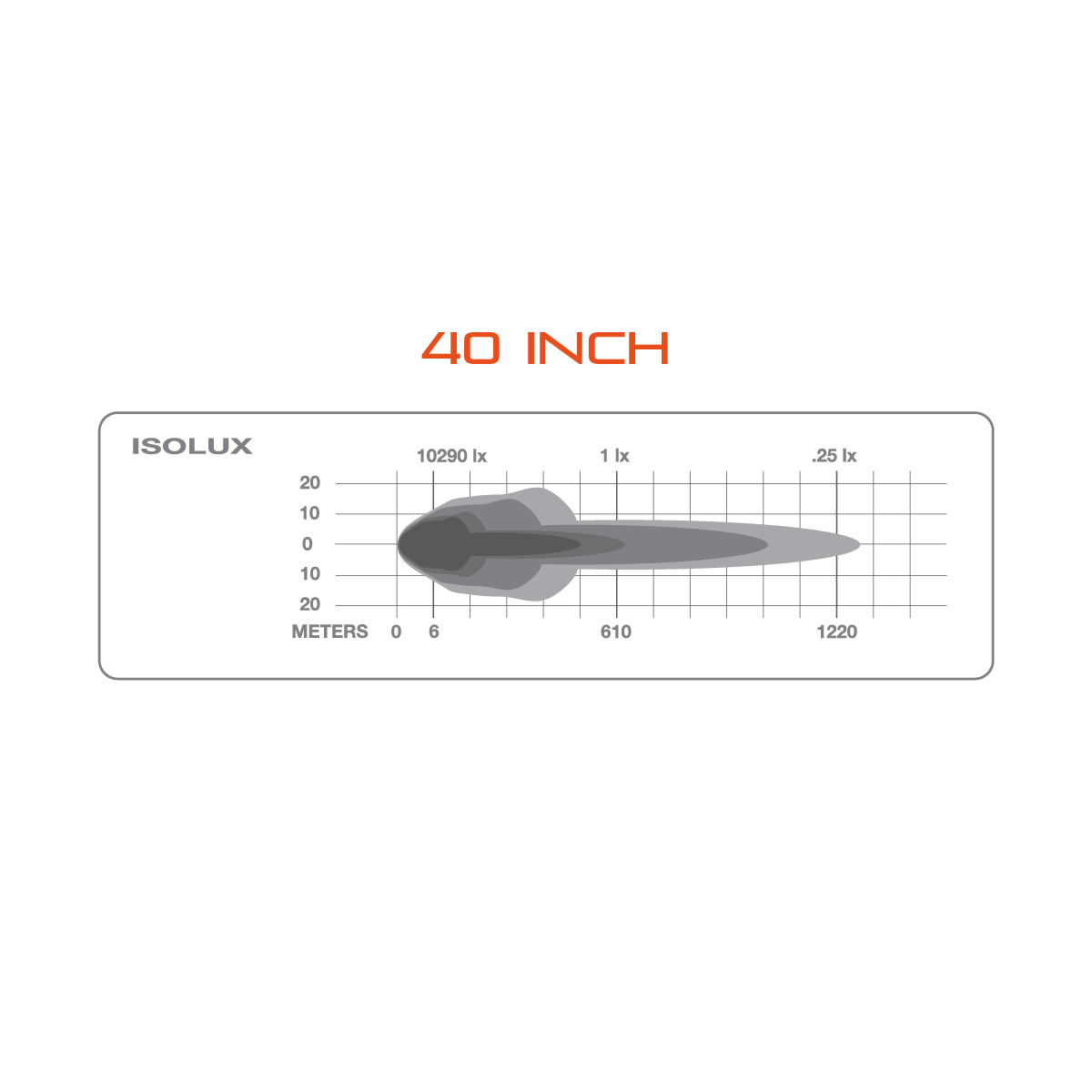

Beam @ 1 Lux: 610m
LED Chips: Osram 5W
Colour Temp: 6000-6500K
Housing Material: 6063 Aluminium
Housing Coating: DuPont®
Lens Material: GE Lexan® Polycarbonate
IP Rating: IP68 / IP69K
Ventilation: Gore® PolyVent
Weight: 2.7Kg
Body Dimensions: (L)1065 x (H)46 x (W)49mm
Lens Dimensions: 40" (1016mm)

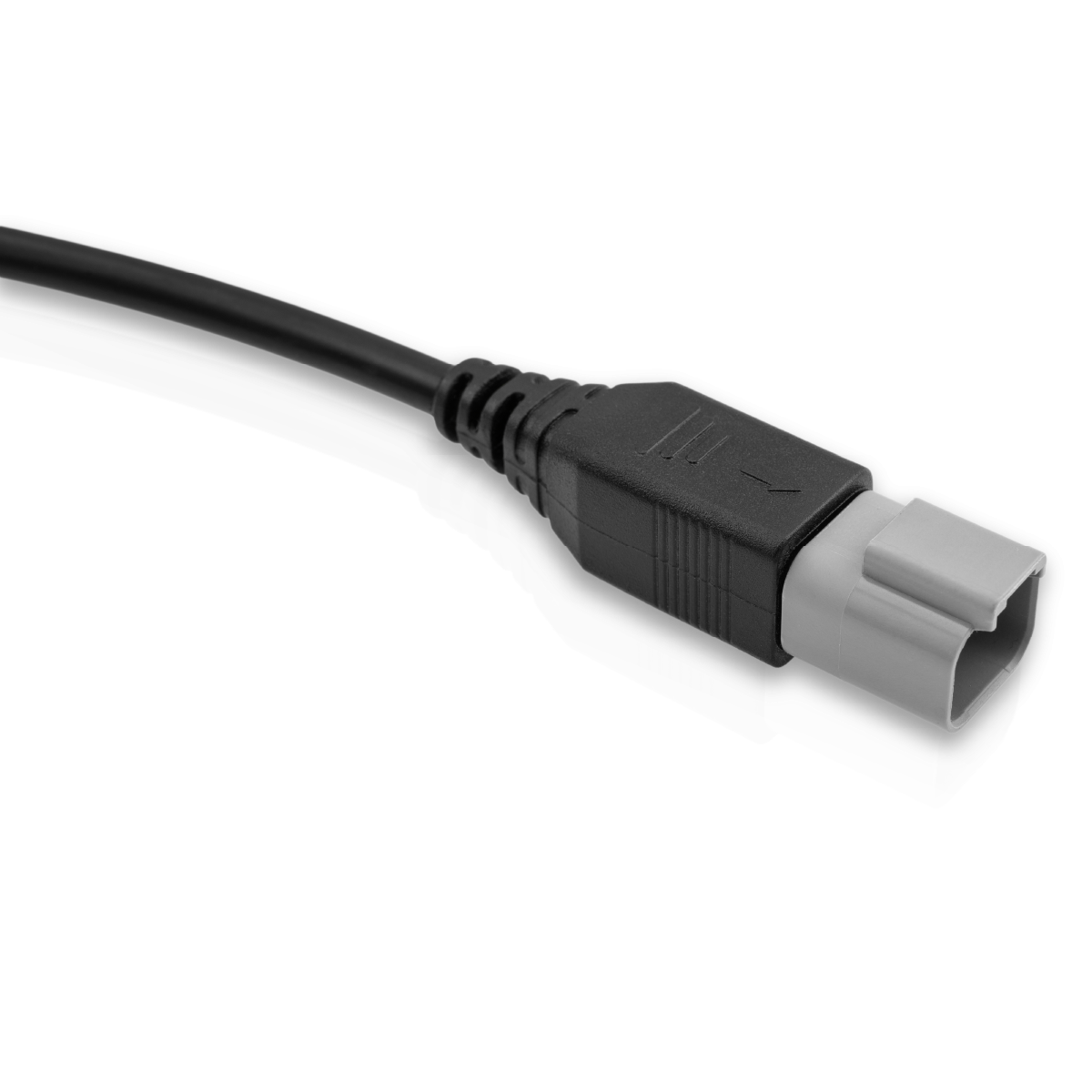

Connector Type: DT Sealed
Operating Temp: -40ºC - 145ºC
Certification: CE, RoHS, RCM

• LED Light Bar

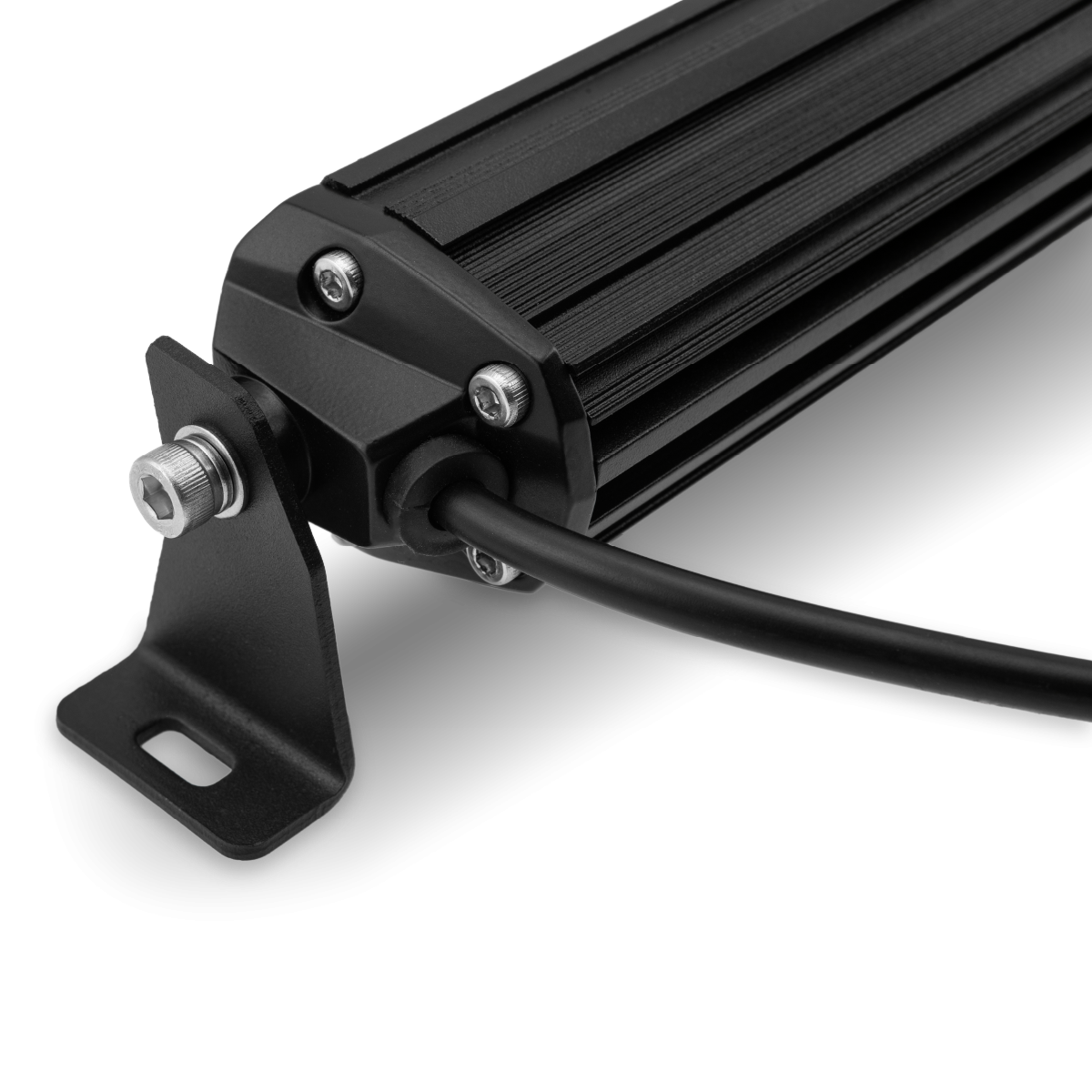

• Side-Mount Brackets & Hardware

Harnesses available separately*

What Harness Do I Need?*
